Perforated Metal Sheet
Material:
Iron plate, stainless steel plate, aluminum plate, copper plate and so on.
Products description
Surface:
Spray, polishing, oxidation treatment, galvanized, etc.
Hole shape:
Round, length, square, scale hole, hexagonal hole, plum blossom and so on.
Characteristics and usage:

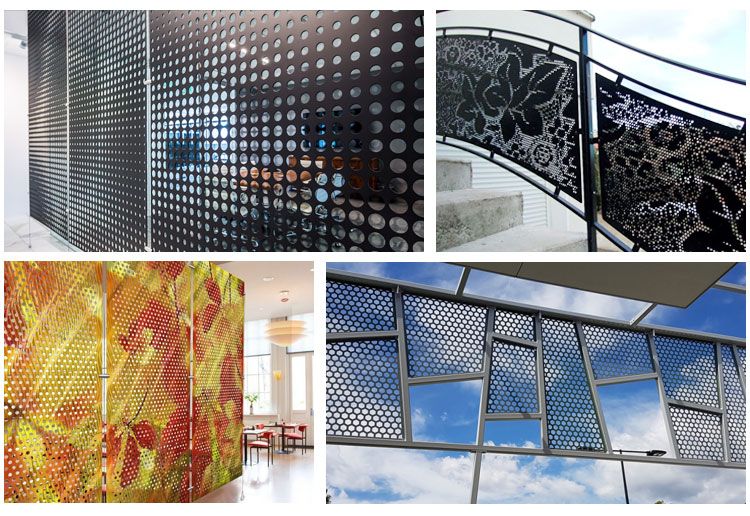

Used for its variety of holes sizes, percentage of open area, high strength-to-weight ratio and aesthetic appeal, Perforated Metal has endless applications such as enclosures, partitions, sign panels, guards, screens, and more.
| Material | Thickness | Hole | Pitch(mm) | Sheet | Sheet | Porosity | Weight |
| of Metal(mm) | Dia.(mm) | Width(m) | Length(m) | (%) | (kg/m2) | ||
| Rolling Plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 20 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 20 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 20 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 20 | 19.6 | 5 | |
| 0.8 | 20 | 3.4 | 1 | 20 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 20 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 20 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 20 | 19.6 | 18.8 |
